How to Add Photos to DSC Keypad HS2TCHPRO

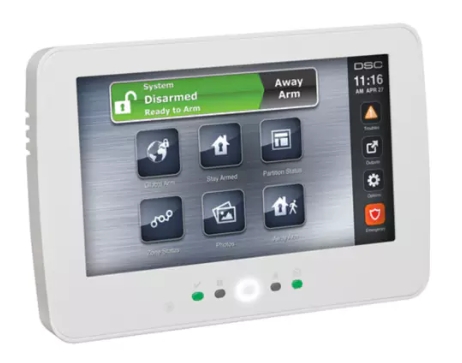

The DSC PowerSeries Pro Wired Touch Screen (HS2TCHPRO), compatible with PowerSeries Pro HS3032 and HS3128 alarm panels, includes a built-in digital picture frame feature. Using the SD card slot, you can easily update and customize the touchscreen keypad, adding a personal touch to your security system.
You can create a slideshow of photos to view on your keypad. Photos are added using an SD card (not supplied).
The photos must be in .JPG format and can be up to 1280 x 720 in size. For best results, use 800 x 400 resolution.
To start the slideshow, press the Photos button on the Home page. The slideshow plays automatically until the timeout is reached or the screen is touched again.
To Add Photos to your HS2TCHPRO:
- Navigate to Options > User Functions > Keypad Config > Picture Frame > Select Photos. Thumbnail images of the photos on your SD card are displayed.
- Touch an image to add it to the slideshow. Touch it a second time to remove it.
Use the Transition Time slider to program the amount of time each photo is on the screen, from 5 seconds to 1 minute.
Use the Photo Frame Timeout slider to control how long your slideshow plays for, from 1 minute to 2 hours. Select Never to keep the slideshow running until the screen is physically touched.
