SFP and SFP+ Modules Explained

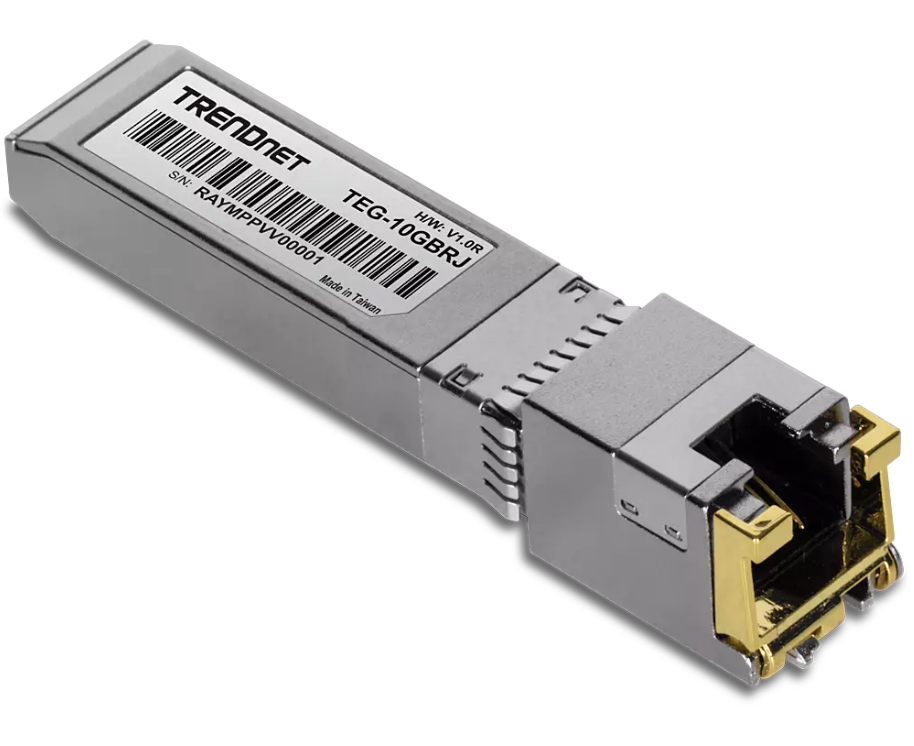

What is an SFP/SFP+ Module?
The acronym SFP stands for Small Form-factor Pluggable. An SFP module is a compact, hot-swappable I/O device that plugs into network equipment such as switches to provide a flexible interface. Its primary function is to convert electrical signals from the device into optical signals for transmission over fiber optic cables, and vice versa. This capability allows for variable speed and distance support. Commonly referred to as a mini-GBIC (Gigabit Interface Converter) or simply an SFP transceiver, it enables communication between switches across distances ranging from tens to hundreds of kilometers, making it an essential component for connectivity in nearly all modern networking switches and routers.
The SFP+ module is an advanced version of the original SFP, designed to handle higher data rates. While standard SFP modules typically support speeds of up to 1 Gbps, SFP+ modules can achieve data rates of up to 10 Gbps. This makes SFP+ modules particularly well-suited for high-performance networking applications that demand faster speeds and greater efficiency.
How to choose the right SFP/SFP+ for your Network?
Verify the port speed supported by your switch (or other network device).
Identify the type of network cabling you currently use. If your setup relies on multimode fiber, select a multimode SFP/+. If it uses single-mode fiber, then a single-mode SFP/+ is required.
Consider your target link distance, link budget and operating environment, ensuring the module supports longer transmission distances to prevent failures from poor cabling or dirty fiber ends, while using commercial-grade transceivers for typical indoor setups and industrial-grade transceivers for harsh outdoor conditions.
